SJ Ultimate Gallery — Complete Setup Guide

Details
Category: SJ Ultimate Gallery

Audience: Joomla administrators and site editors who have never used this module before. This guide covers installation, configuration, content sources (folder/manual), layout choices, styling, multi-instance usage, embedding, troubleshooting and recommended screenshots.

Contents

  1. Requirements
  2. Installation
  3. Publishing the Module
  4. Content Sources: Folder Mode
  5. Content Sources: Manual Mode
  6. Layout & Behavior Settings
  7. Styling & Typography
  8. Embedding the gallery in articles or templates
  9. Performance & Security best practices
  10. Troubleshooting & FAQ
  11. Quick Start

1. Requirements

2. Installation

Install the module package via Joomla Installer.

Steps

  1. Log in to your Joomla 6 Administrator.

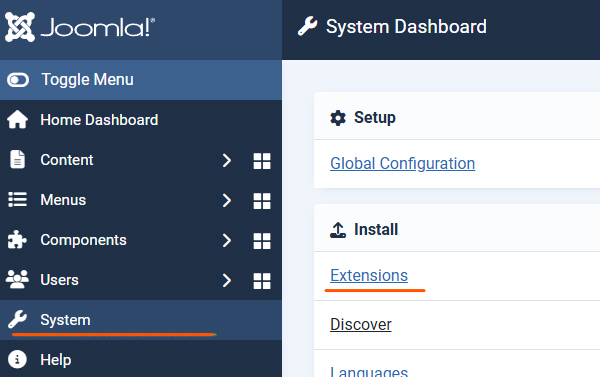

  2. Navigate to System > Install > Extensions.
  3. Drag and drop the mod_sj_ultimate_gallery-JX.v.X.zip file you downloaded onto the upload area.

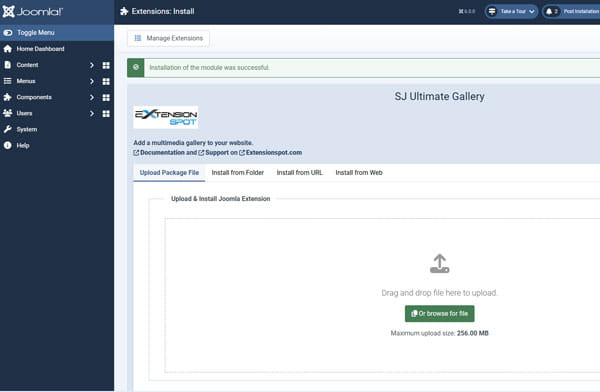

  4. Once you see the "Installation of the module was successful" message, you are ready to start.



3. Publishing the Module

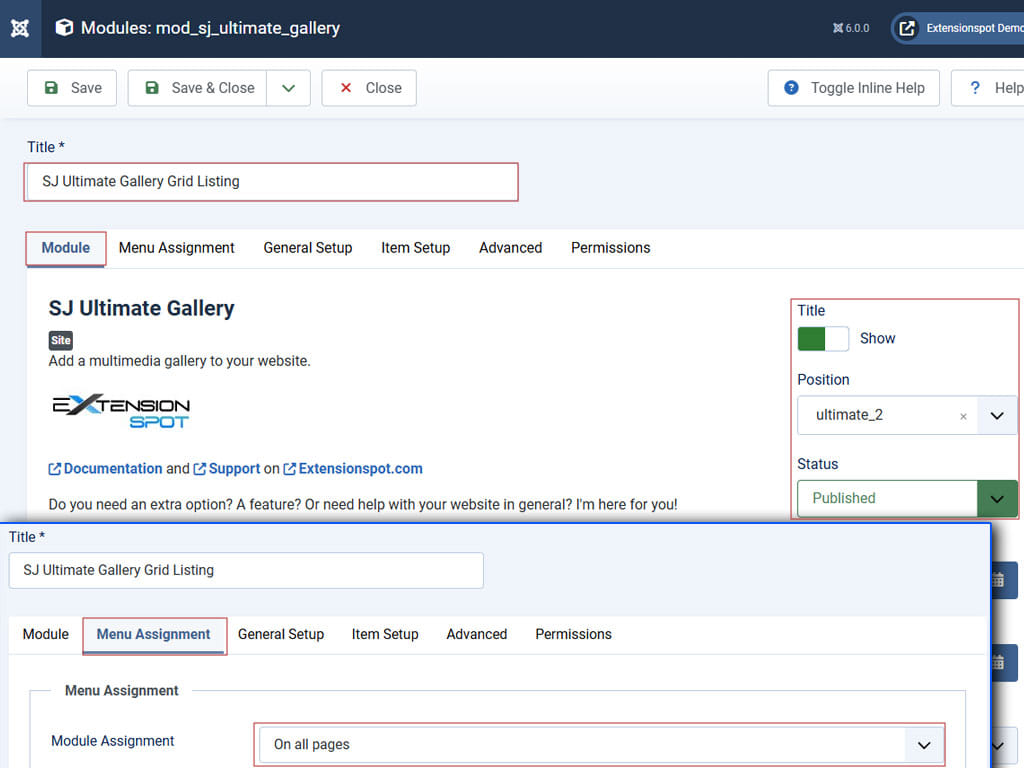

After installation you must create/publish a module instance.

Steps

  1. Go to Content-> Site Modules
  2. Click New and choose SJ Ultimate Gallery from the list of module types.
  3. Configure the basic module settings:
Field Suggested value / Notes
Title My Gallery — visible name
Position Your template position (e.g., position-7) or create a custom position
Status Published
Menu Assignment Choose the pages where the gallery should appear



4. Click Save & Close.





4. Content Source — Folder Mode (Auto)

Folder Mode is the fastest way to create a gallery: point the module to a server folder and it will load items automatically.

Prepare the folder

Module parameters (Folder Mode)

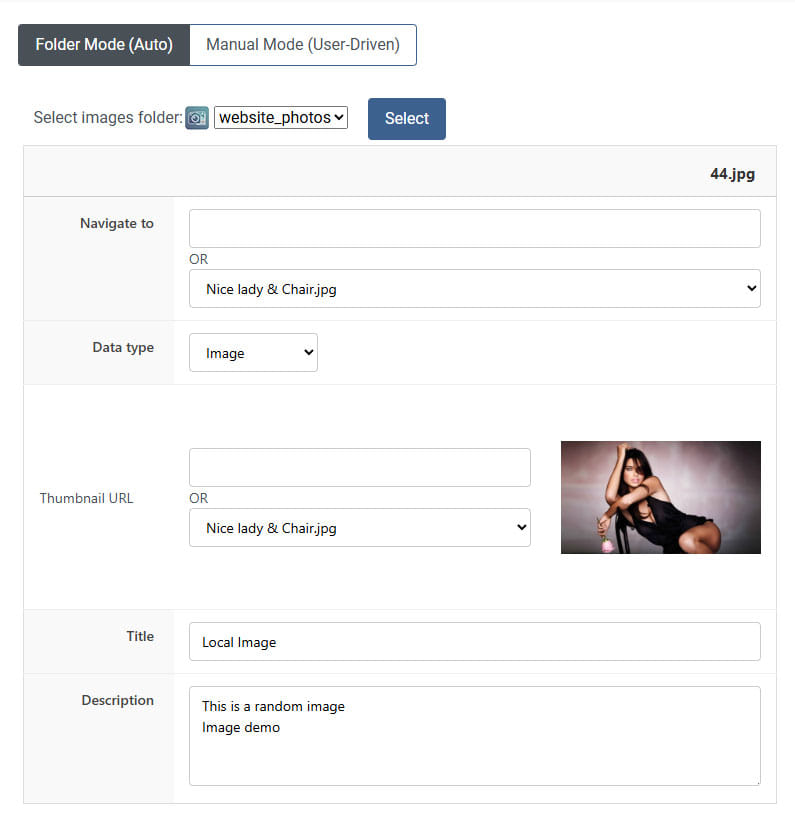

Open your module instance and select Item Setup > Folder Mode(Auto). Configure:

After the folder is selected all the images will be loaded into rows.

For each item details can be changed such as:

Save the module when finished.



5. Content Source — Manual Mode (Curated)

Manual Mode gives full control — add each gallery item with its own image, thumbnail, title, description and optional video URL.

Adding items

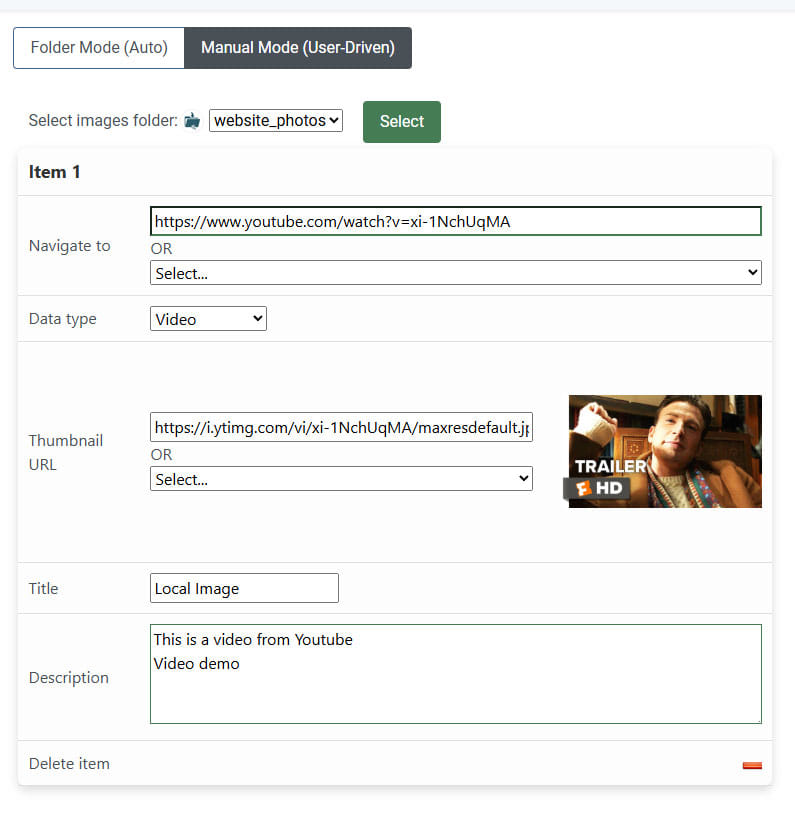

  1. Open the module and select Item Setup > Manual Mode (User-Driven).
  2. Use the "Add Item" button to create a new row for each media item.
  3. For each item, fill fields such as:
    • Navigate to:  to point the lightbox to open an image or location. Type a location or select an image from the selector.
    • Data type: image, video, web page or google maps - choose this to indicate what type of content will be loaded into the lightbox
    • Thumbnail URL: The url of the thumbnail. Type a location or select an image from the selector.
    • Title
    • Description
    • The minus icon will delete the current item
  4. Save the module when finished.

Recommended manual item example

{
  "Navigate to": "images/your-gallery/photo-01.jpg"
  "Data_type": "image",
  "Thumbnail URL": "images/your-gallery/thumbs/photo-01.jpg"
  "Title": "Sunset over the hills"
  "Description": "Captured during golden hour — 50mm lens."
}

For a YouTube video item:

{
  "Navigate to": "https://www.youtube.com/watch?v=xi-1NchUqMA"
  "Data_type": "Video",
  "Thumbnail URL": "https://i.ytimg.com/vi/xi-1NchUqMA/maxresdefault.jpg"
  "Title": "Official Knives Out trailer"
  "Description": "US Release Date: November 27, 2019
Starring: Ana de Armas, Chris Evans, Daniel Craig
Directed By: Rian Johnson
Synopsis: A detective investigates the death of a patriarch of an eccentric, combative family."
}



6. Layout & Behavior Settings

Choose the layout engine and interaction model that best fits your content from General Setup > General Settings.

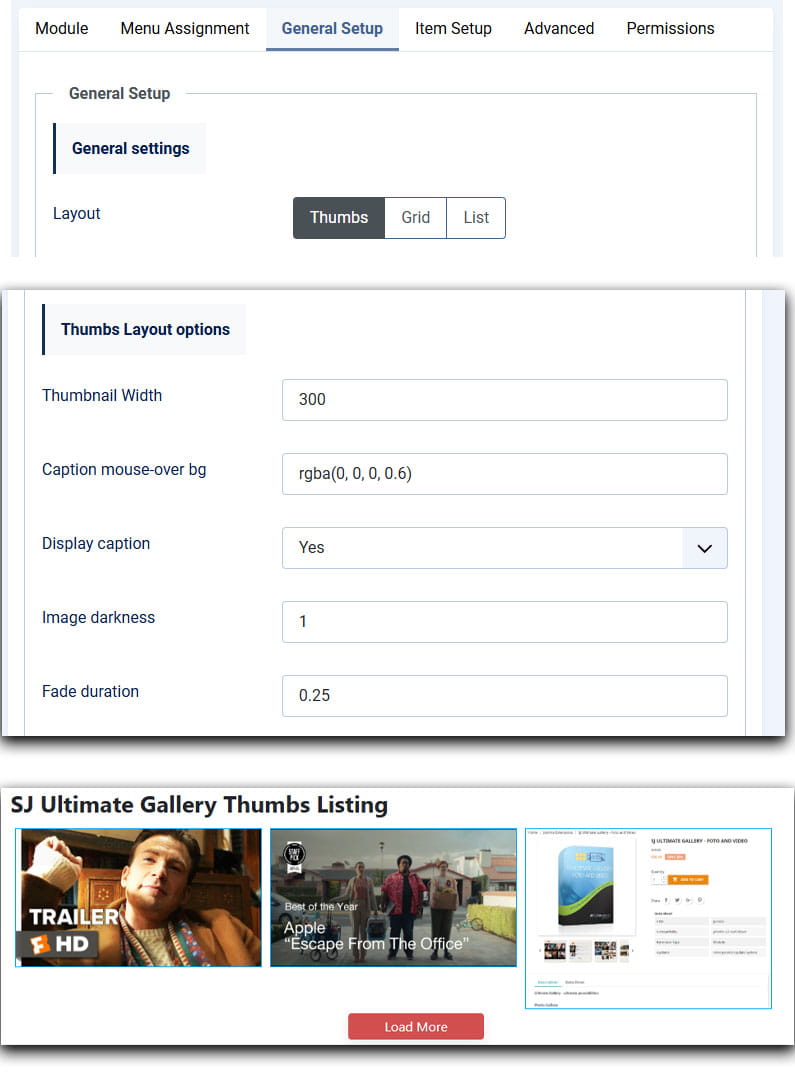

Thumbs Layout

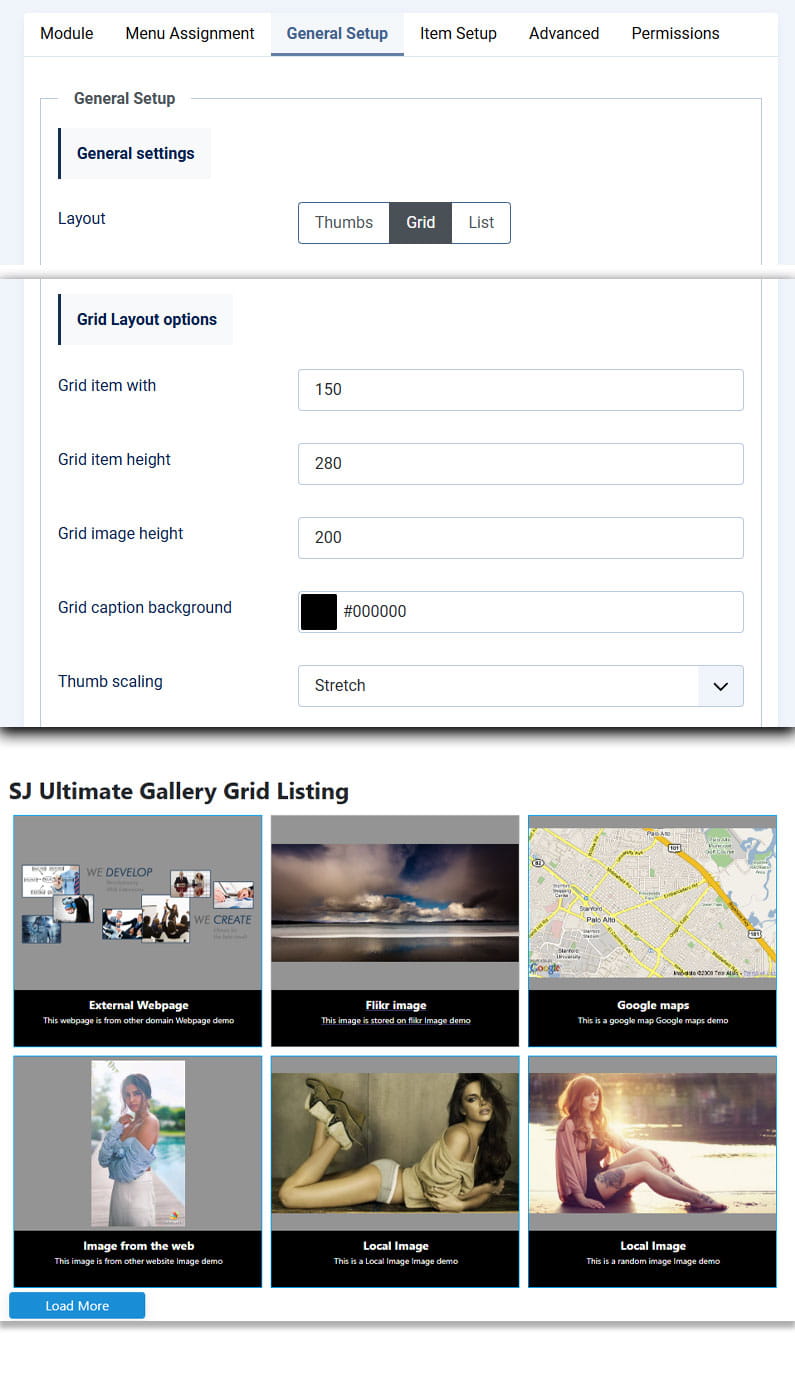

Grid Layout

List Layout

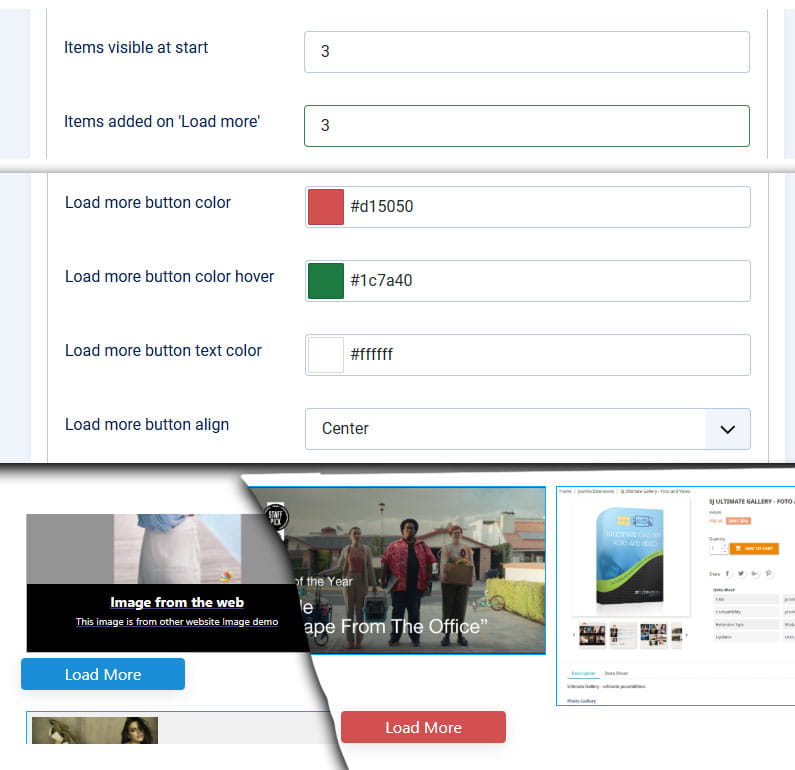

Load More & Pagination



7. Styling & Typography

Extensive no-code styling options are available. These are applied via generated inline CSS controlled by parameters.

Description Settings

Description font size /Title font size: allows you to set the size for the title and description of the thumb.

Description font weight /Title font weight: you can choose the weight for the font - Normal or Bold.

Description text color /Title text color: allows you to set a color for both the title and the description.

Description align / Title align: you can choose Left, Center or Right.

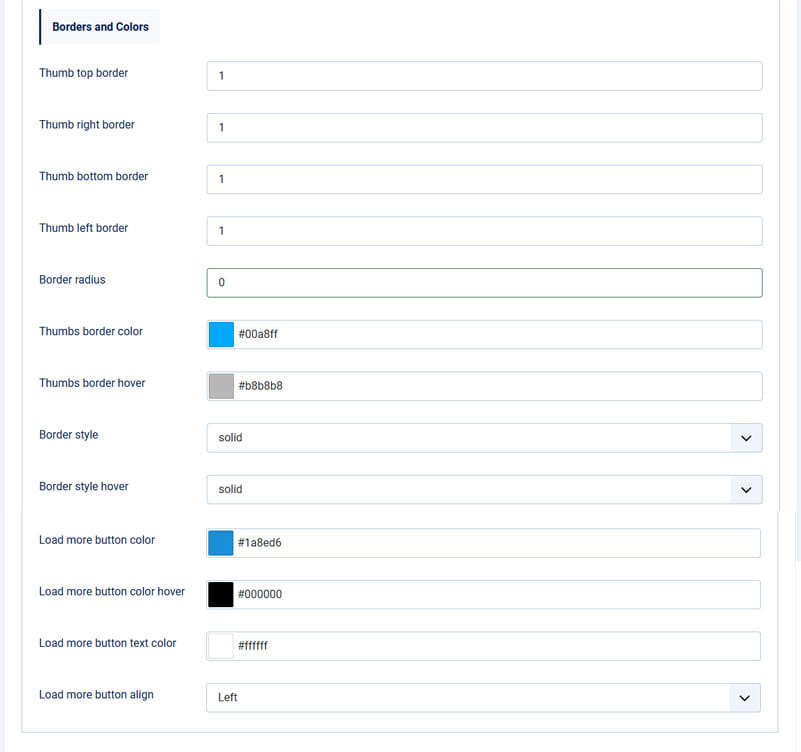

Borders and colors

Thumb top / right / bottom / left border: Set the thickness of the border (increase the value for a thicker line).

Border radius: the more higher the no value, rounder the corners of the thumbs will be. For perfect square, let this value 0.

Thumbs border color: set a color for the border of the thumb.

Thumbs border hover: set a color for the border of the thumb when mouse-over.

Border style / Border style hover: you can select the syle for the border, in both normal and mouse-over state. (solid, dotted, dashed, double, ...)





8. Embedding the gallery in articles or templates

There are two common ways to display the module: by assigning it to a template position or embedding it inside an article using the Load Position plugin.

Method A — Module position (recommended)

Method B — Insert inside an article

Use the core Joomla "Load Module" / "Load Position" plugin. Example:

loadposition my-gallery-position

or, if loading by module ID (inside curly brackets):

loadmoduleid 123

Note: Ensure the "Content - Load Modules" plugin is enabled in the Plugin Manager.



9. Performance & Security Best Practices

10. Troubleshooting & FAQ

Q: The gallery shows blank squares or missing images

A: Confirm the image paths and permissions. If using Folder Mode, verify files are in the folder specified and filenames do not contain special characters. Use the browser console (F12) to check 404 errors.

Q: Fancybox or Masonry is not working or conflicts with other extensions

A: The module uses Joomla's Web Asset Manager to avoid duplicates. If conflicts persist, check for other extensions loading the same libraries incorrectly (multiple jQuery instances). Use the console to find errors and ensure no other extensions call legacy jQuery in noConflict mode.

Q: Multiple galleries on the same page cause behavior issues

A: The module generates unique DOM IDs per instance. Make sure module caching or template overrides are not altering those IDs. Try disabling caching temporarily to test.

Q: Videos don't autoplay or appear cropped

A: Check video URL correctness (copy the standard YouTube/Vimeo URL). For autoplay, ensure browser policies and Fancybox autoplay options are enabled; many browsers block autoplay without user interaction.

Q: I want custom CSS overrides — where to place them?

A: You can add overrides in your template's custom CSS or use the template's "custom.css" file. Prefer not to edit module core files — use template overrides or additional CSS files.



11. Quick Start — Minimal Settings Example

If you want to get a gallery online in under 5 minutes, follow this minimal flow:

  1. Install module package.
  2. Upload 12 optimized images to images/quick-gallery/.
  3. Create new module: Title "Quick Gallery", Position "position-7", Published.
  4. Set Item Setup > Folder Mode (Auto) > Folder Path: images/quick-gallery/.
  5. Layout: Thumbs, Items visible at start: 8, Items added on 'Load more': 4.
  6. Save & Open a frontend page assigned in Menu Assignment.
